Epson SurePress L-6534VW and ColorWorks Label Printing: What Finishing Equipment Do You Actually Need?
The SurePress L-6534VW and ColorWorks CW-C6500 are two entirely different Epson label printing platforms — each with a different finishing requirement and a different answer to the question of downstream workflow.
Key Takeaways
- The Epson SurePress L-6534VW outputs unfinished printed rolls on a 340mm web at up to 164 ft/min — a separate finishing system is required before labels can be shipped.
- The ArrowCut Nova 330R (13.7-inch / 348mm web width, 150W CO₂, 10,000 labels/hour) is the primary finishing recommendation for SurePress output, particularly on film substrates where UV-cured ink is sensitive to blade pressure.
- The EZCut 330R+ (350mm cutting width, 150 cuts/minute) is the blade die cutting alternative for SurePress converters running paper facestocks or established repeating shapes.
- The Epson ColorWorks CW-C6500A includes a built-in auto-cutter that outputs individually finished labels directly — a separate finisher is only appropriate when the inline cutter is bypassed for batch roll production.
- The EZCut 350R (up to 6 cutting heads, 9 m/min, 100–350mm media range) is the recommended finisher for ColorWorks CW-C6500A users who print labels to roll in batch mode.
Understanding the Two Epson Buyer Profiles
The SurePress L-6534VW and ColorWorks CW-C6500 sit at opposite ends of the Epson label printing range — and their finishing requirements are just as different as the machines themselves.

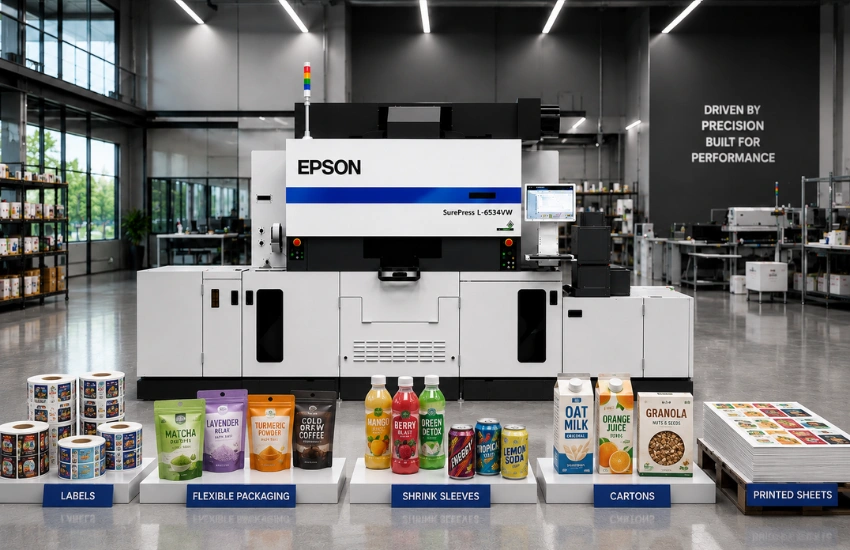

The Epson SurePress L-6534VW is a single-pass UV LED inkjet press built for label converters. It runs on a 340mm web, outputs at up to 164 ft/min (50 m/min) in productivity mode, and uses a PrecisionCore Linehead with LED UV curing for CMYK, white ink, digital varnish, and optional orange. Its monthly capacity reaches up to 2.0 million square feet. The output is a printed roll — not a finished label. Every roll that exits the press needs die cutting, lamination, matrix removal, and slitting before it becomes a finished, shippable product. There is no inline finishing built into the press.
The Epson ColorWorks CW-C6500A is a compact serial inkjet printer for in-house teams — warehouses, food manufacturers, healthcare facilities — replacing black-only thermal printers with full-color label output. Print width is 8.5″ (215mm), ink is UltraChrome DL pigmented (not UV-cured), and the CW-C6500A includes a built-in auto-cutter that outputs individually finished labels immediately. No downstream finishing is part of the standard workflow.
SurePress L-6534VW: Finishing Equipment for Production Label Converting
The SurePress L-6534VW outputs UV-cured printed rolls on a 340mm web — die cutting, lamination, and slitting are mandatory steps before those rolls become finished labels.
Why Finishing Is Non-Negotiable After the SurePress
The SurePress L-6534VW outputs printed rolls — matrix waste still attached, not yet cut to shape, not laminated. Every roll requires a downstream finishing system before labels can ship. Two factors shape which system to choose:
Physical die lead times undercut short-run agility. Die tooling takes 5 to 10 business days to procure per shape. For a press designed for fast digital short runs, tying the finishing step to physical dies reintroduces exactly the lead-time constraint digital printing was adopted to eliminate. Laser finishing removes this entirely — job changes require a file update, not a new tooling order.
UV-cured ink on film substrates requires care at the cutting stage. On film materials — PET, BOPP, metallized films — UV-cured ink at the cut edge can micro-delaminate or crack under blade cutting pressure, particularly on premium applications where edge quality is visible at point of sale. Laser cutting makes no mechanical contact with the ink surface.
ArrowCut Nova 330R — Primary Laser Finishing for SurePress Output
The ArrowCut Nova 330R is the primary finishing recommendation for Epson SurePress L-6534VW converters. Its 150W CO₂ Galvano laser operates across a 13.7-inch (348mm) web width — a near-exact match to the SurePress’s 340mm print width, with an 8mm margin that accommodates the full web output plus edge guides and registration marks.
At up to 10,000 labels per hour with ±0.02mm web guide tolerance, it matches the throughput and registration demands of a converter-scale press. The system handles paper, PET, PP, BOPP, Lexan, and more — all without physical dies — with full cut, kiss cut, perforation, hatching, etching, marking, and split cut available in a single pass alongside inline lamination, matrix removal, slitting (up to 5 knives), and rewinding.
Specification | ArrowCut Nova 330R |
Laser | 150W CO₂ Galvano laser |
Max media width | 13.7″ (348 mm) |
Web guide tolerance | ±0.02 mm |
Max throughput | Up to 10,000 labels/hour |
Max label length | Up to 3.9 ft (1.2 m) |
Max roll diameter | 15.75″ (400 mm) |
Cutting functions | Full cut, kiss cut, perforation, hatching, etching, marking, split cut |
Compatible materials | Paper, PET, PP, BOPP, Lexan, and more |
Inline functions | Cold lamination, matrix removal, slitting (up to 5 knives), rewinding |
Rated voltage | 220V |
EZCut 330R+ — Blade Die Cutting Alternative for SurePress Converters
The EZCut 330R+ is the blade die cutting option for Epson SurePress L-6534VW workflows. Its 350mm cutting width directly accommodates the SurePress’s 340mm web output, with a 10mm margin for registration and edge guides. At 150 cuts per minute with ±0.1mm cutting accuracy, it handles medium-to-high volume finishing for converters who prefer blade-based die cutting.
The EZCut 330R+ is the stronger choice for paper facestocks and established recurring shapes, where blade cutting is less likely to cause delamination and tooling investment is justified by repeat volume. Flatbed cutting alongside roll-to-roll production adds further flexibility. Standard configuration includes two cutting heads (expandable to four), four slitting blades (expandable to fifteen), automatic deviation correction, cold lamination, and automatic matrix removal.
Specification | EZCut 330R+ |
Type | Blade die cutter — flatbed + roll-to-roll hybrid |
Cutting media width | 100–350 mm |
Max label width | 350 mm |
Max cutting speed | 150 cuts/minute |
Cutting accuracy | ±0.1 mm |
Cutting heads | Standard: 2 — expandable to 4 |
Slitting units | Standard: 4 blades — expandable to 15 |
Supported materials | Self-adhesive, PP synthetic, aluminum plastic film, PET, PVC, white card, copper plate, flexible materials |
File format | PLT |
Power supply | 220–240V AC, 50–60Hz, 500W |
Laser vs. blade for SurePress output: Film substrates, variable shapes, or short-run agility → ArrowCut Nova 330R. Paper facestocks, established repeating shapes, or flatbed capability needed → EZCut 330R+.
ColorWorks CW-C6500: When a Separate Finisher Actually Makes Sense
The ColorWorks CW-C6500A includes a built-in auto-cutter — understanding exactly when that cutter is bypassed determines whether a separate finishing system adds any real value.
The Built-In Auto-Cutter: What It Does and What It Doesn't
The ColorWorks CW-C6500A is a compact serial inkjet label printer for in-house environments. It uses UltraChrome DL pigmented ink (not UV-cured) and includes a built-in auto-cutter that trims each label to length after printing — the output is an individually finished, ready-to-apply label. For standard on-demand use cases (product identification, inventory, food production dating, healthcare), no downstream finishing system is needed.
When Batch or Roll Mode Changes the Equation
Some ColorWorks CW-C6500A operations reach a volume where printing individually to the auto-cutter becomes a throughput constraint. Running labels continuously to roll — without using the auto-cutter — and finishing them in batch on a separate system is more efficient at higher volumes and enables multi-lane slitting for small labels. When operating in this batch roll mode, a compact roll-to-roll finisher with a media width that accommodates the 215mm CW-C6500 output is the appropriate addition.
EZCut 350R — Compact Blade Finishing for ColorWorks CW-C6500A Batch Roll Output
For ColorWorks CW-C6500A operators printing to roll in batch mode, the EZCut 350R is the appropriate downstream pairing. Its 100–350mm media range accommodates the 215mm CW-C6500 output with room to spare. Up to six cutting heads with AI-controlled spacing and CCD camera positioning deliver 0.1mm precision. Cold lamination, matrix removal, slitting (up to 15 blades), rewinding, and automatic job changeover via inline barcode reader are all handled in a single pass.
Specification | EZCut 350R |
Type | Multi-blade digital label cutter — roll-to-roll |
Cutting media width | 100–350 mm |
Max label width | 330 mm |
Max label length | 800 mm |
Working speed | 9 m/min (7cm × 15cm square label) |
Cutting heads | Standard: 4 — expandable to 6 |
Die cutting precision | 0.1 mm |
Slitting width | 10–330 mm |
Slitting speed | Max 100 m/min |
Max roll diameter | 450 mm |
File format | PLT, DXF |
Power | AC 100–240V, 50–60Hz, 1,000W |
Finishing Equipment Decision Guide
Use this guide to identify the correct Arrow finishing equipment based on your Epson press model and production mode.
Epson SurePress L-6534VW → Primary recommendation: ArrowCut Nova 330R (laser)
The 13.7-inch (348mm) web width matches the SurePress’s 340mm output. Laser cutting is preferred for UV-cured ink on film substrates (PET, BOPP, metallized films) where blade pressure risks edge delamination. No physical dies — no tooling lead times. Up to 10,000 labels/hour throughput. Best suited for converters running film materials, variable short-run shapes, or high SKU diversity where job changeover speed matters.
Epson SurePress L-6534VW → Alternative: EZCut 330R+ (blade)
The 350mm cutting width directly accommodates the SurePress’s 340mm web output. Blade die cutting at 150 cuts/minute with ±0.1mm accuracy. Flatbed + roll-to-roll hybrid capability. Best for converters predominantly running paper facestocks, established recurring label shapes, or operations that need the flatbed cutting mode in addition to roll finishing.
Epson ColorWorks CW-C6500A (batch roll mode only) → EZCut 350R
Applies only when the CW-C6500A’s auto-cutter is not used and labels are printed continuously to roll for batch processing. The EZCut 350R’s 100–350mm cutting range accommodates the CW-C6500’s 215mm output. Up to 6 cutting heads with AI-controlled head spacing, CCD camera positioning, cold lamination, slitting, and automatic job changeover via inline barcode reader.
Epson ColorWorks CW-C6500A (standard on-demand mode) → No separate finisher required
In standard operation with the built-in auto-cutter active, the CW-C6500A outputs individually finished labels directly from the printer. Adding a separate finishing system in this mode introduces unnecessary cost and complexity without workflow benefit. The inline cutter handles all label trimming for standard on-demand production.
Press-to-Finisher Compatibility at a Glance
Epson Press | Max Print Width | Output Type | Recommended Finisher | Best For |
SurePress L-6534VW | 340 mm | Unfinished printed roll (always requires finishing) | ArrowCut Nova 330R — laser, primary | Film substrates, UV-cured output, variable shapes, short-run agility |
SurePress L-6534VW | 340 mm | Unfinished printed roll (always requires finishing) | EZCut 330R+ — blade, alternative | Paper facestocks, established recurring shapes, flatbed capability needed |
ColorWorks CW-C6500A (roll mode) | 215 mm | Printed roll — inline cutter bypassed | EZCut 350R | Batch production, lamination, multi-lane slitting at small-to-medium volume |
ColorWorks CW-C6500A (standard mode) | 215 mm | Individually finished labels — inline cutter active | None required | On-demand in-house label production: identification, warehousing, food production dating |
For a complete overview of Arrow’s finishing range — including laser finishers, multi-blade die cutters, and semi-rotary systems compatible with other digital label press brands — visit the Arrow label finishers product page.
Frequently Asked Questions
Answers to the most common questions about downstream finishing for Epson SurePress L-6534VW and ColorWorks CW-C6500A label printing workflows.
Yes. The SurePress L-6534VW outputs unfinished printed rolls at up to 164 ft/min on a 340mm web — die cutting, lamination, matrix removal, and slitting are all required before labels can ship. The ArrowCut Nova 330R or EZCut 330R+ completes the production workflow.
The ArrowCut Nova 330R is the primary recommendation — its 13.7-inch (348mm) web width closely matches the SurePress’s 340mm print width, and laser cutting is preferred for UV-cured ink on film substrates. The EZCut 330R+ (350mm cutting width) is the blade alternative for paper facestocks and established shapes.
Not in standard operation. The CW-C6500A’s built-in auto-cutter outputs finished labels directly. A separate finisher is only needed when the auto-cutter is not used and labels are collected in batch roll mode — the EZCut 350R handles lamination, cutting, and slitting for that specific scenario.
The SurePress cures ink with UV LED technology during printing. On film substrates (PET, BOPP, metallized films), UV-cured ink can micro-delaminate under blade cutting pressure. Laser cutting makes no mechanical contact with the ink surface, eliminating that risk. Blade die cutting remains viable for paper facestocks.
The SurePress L-6534VW prints up to 340mm wide. The ArrowCut Nova 330R provides a 13.7-inch (348mm) web width; the EZCut 330R+ provides a 350mm cutting width. Both accommodate the full SurePress web without requiring web trimming beforehand.
Evaluate Arrow Finishing Equipment for Your Epson Press
Arrow Systems manufactures the ArrowCut Nova 330R, EZCut 330R+, EZCut 350R, and the full Arrow finishing range — compatible with Epson, Konica Minolta, HP Indigo, Durst, Screen, and other digital press platforms. Request specifications or ask about sample cut options for your specific press and substrate.
