Digital Printing for Short-Run Shrink Sleeves

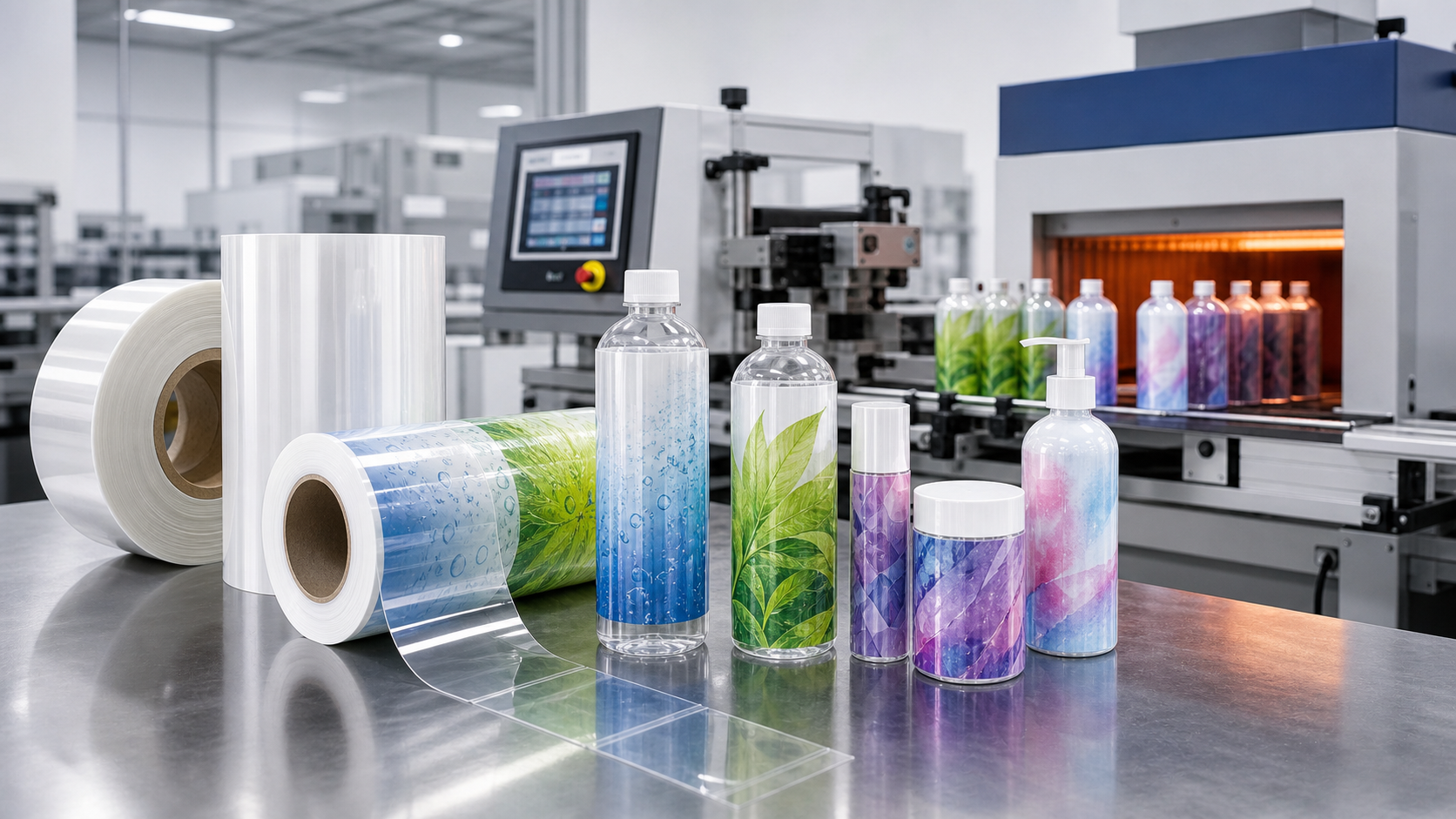

Digital printing is a practical option for short-run shrink sleeves when a brand needs prototypes, launch quantities, regional versions, or several SKUs. Sleeve production is more demanding than printing flat artwork. The image must be distorted for the container, printed on a compatible film, seamed into a tube, cut, applied, and shrunk without losing legibility or creating visible defects.

The container, film, and shrink tunnel form one system. Before approving artwork, collect the container drawing or scan, fill conditions, sleeve coverage, perforation needs, application equipment, seam location, shrink method, and storage environment. Use production containers because small changes in shape or surface can alter the result.

Choose film from the required shrink behavior

PETG, PVC, OPS, and other shrink films have different shrink curves, stiffness, appearance, and processing characteristics. No material is automatically best. The converter should recommend a grade based on the container geometry, shrink direction, tunnel, seam process, regulatory needs, and recovery profile.

Build artwork around distortion and opacity

Shrink-sleeve artwork is pre-distorted so it appears correct after the film conforms to the container. Distortion is not uniform across a complex shape. A grid test helps map how graphics move around shoulders, waists, and recessed areas. Keep barcodes, nutrition or ingredient panels, warnings, and small text in lower-distortion zones whenever possible.

Because sleeves are commonly reverse printed, the ink sits inside the film and can be protected by the material. White ink may be needed beneath color to control opacity. Confirm the exact ink order, white strategy, seam allowance, eye marks, and print orientation with the converter and press operator.

Plan the complete converting route

A printed roll is typically slit, seamed, inspected, and cut or supplied as tubing before application. Each step introduces tolerances. Poor slit edges can affect seaming. Variable web tension can move the artwork. A seam that crosses critical graphics can create a visible band.

Arrow’s digital flexible packaging printers provide a starting point for print-width and ink-system evaluation. The broader flexible packaging workflow helps frame film compatibility, but the specific shrink film, coating, white ink, seaming chemistry, and tunnel still require qualification.

Run a container and tunnel trial

1. Print a distortion grid and representative graphics on production-intent film.
2. Seam and cut sleeves using the proposed converting process.
3. Apply them on normal production containers.
4. Test the expected tunnel recipe, including startup and restart conditions.
5. Inspect wrinkles, smile and frown distortion, seam appearance, scuffing, color, and code readability.
6. Repeat after any container, film, ink, seam, or tunnel change.

For short-run packaging programs, review the in-house flexible packaging planning guide for the broader lesson: printing has to be matched with converting and the finished-package process.

Calculate cost from accepted sleeves

Short-run digital printing can avoid plates, but total cost includes film, white ink coverage, profiling, setup, slitting, seaming, cutting, application trials, and tunnel waste. Compare accepted sleeves per SKU and the value of smaller replenishment runs with the full outsourced quote. Avoid assuming a lower minimum automatically means a lower total cost.

Also decide who owns distortion files and approved profiles. A repeat job should be reproducible without rebuilding the package from memory. Keep container revision, film lot, seam settings, and tunnel recipe in the job record.

Approve a shrink-sleeve production standard

The approved standard should include the container revision, film grade and gauge, print orientation, color target, white strategy, distortion file, seam allowance, seam position, layflat, cut length, perforation, roll or tubing format, and tunnel recipe. Store photographs of the approved sleeve from several sides because a front view can hide seam or shoulder defects.

Define acceptable and unacceptable wrinkles, distortion, seam visibility, scuffing, cut position, color, and barcode performance. Record where measurements are taken and how long samples should condition before inspection. For repeat orders, compare the new film and container lots with the approved standard before full production. This is especially important when a container supplier makes a small geometry or resin change that is easy to miss in the purchase description.

Retain samples from the start, middle, and end of the approved run. If complaints appear later, these samples help separate print variation from seaming, tunnel, container, or distribution problems. Store them under conditions that preserve useful evidence and tie each sample to the production roll and container lot.
