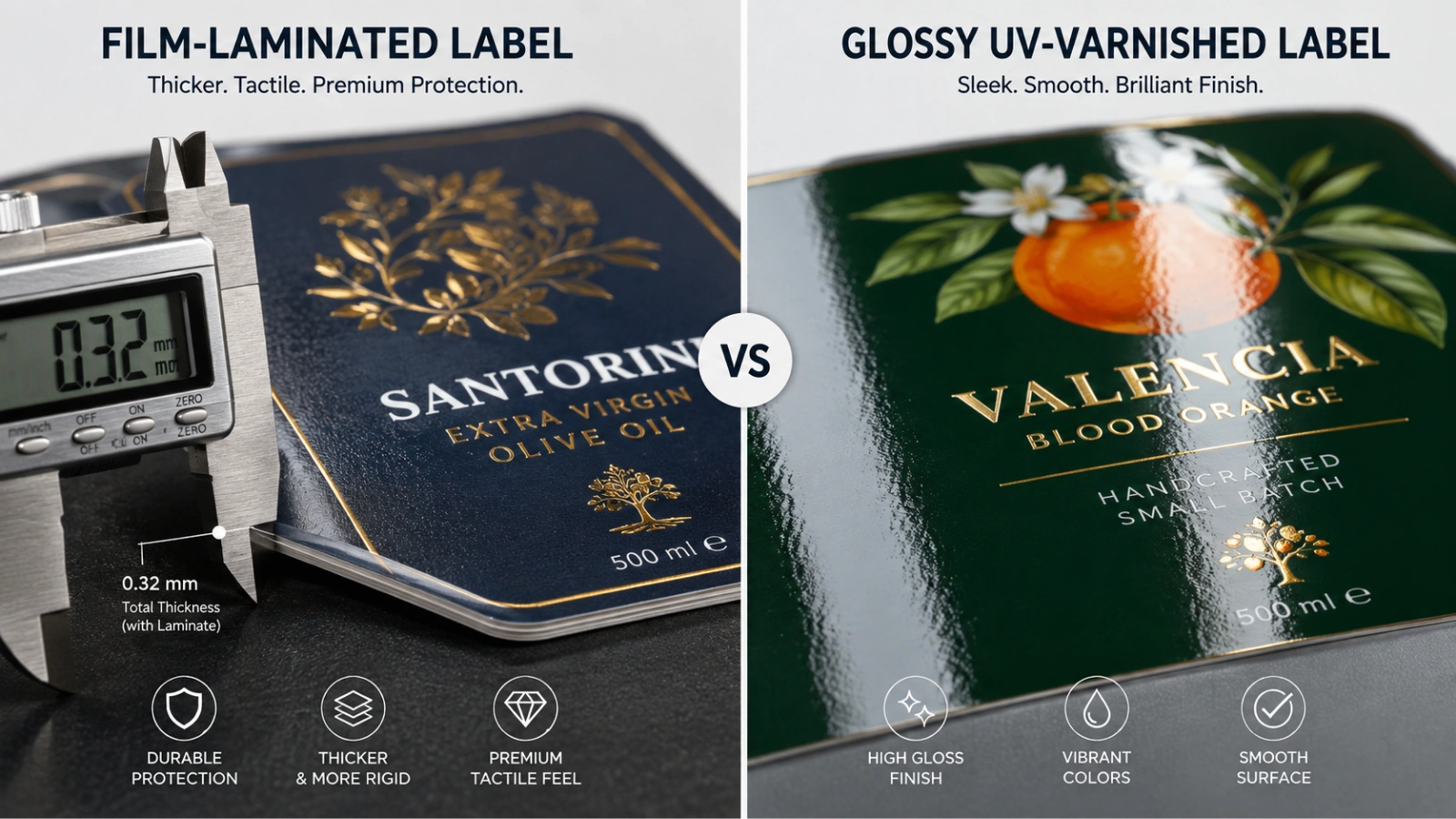

Overlaminate vs. Varnish Labels: How to Choose Protection
Film overlaminate protects against immersion, wash-down, and solvents; UV and aqueous varnish suit retail handling and moisture at lower cost.
Key Takeaways
- Film overlaminate delivers the strongest protection against immersion, wash-down, solvents, and long outdoor dwell, but adds roughly 0.5–2.0 mils of caliper and carries the highest relative cost per thousand.
- UV varnish builds a harder, thicker film than aqueous options and covers retail handling, transit friction, and incidental moisture at lower thickness and cost than laminate.
- Aqueous varnish is the thinnest and lowest-cost option, best suited to short-life SKUs or specs where coating build and recyclability review drive the decision.
- The ArrowJet UV 330H applies UV varnish inline during printing — CMYK+VV or CMYK+WV — removing a separate offline coating pass.
- Arrow’s EZCut 330R+, EZCut 350R, and Aries finishing systems include built-in cold lamination for applying film overlaminate in-house, without an outside converter.
Why Label Surface Protection Matters After Printing
A finished label faces mechanical and chemical stress from the moment it leaves the die — the protection option chosen determines what it survives.
Between rewinding, case packing, palletizing, transit vibration, cooler condensation, wash-down spray, hand oils, cleaner overspray, and shelf handling, a printed label rarely lives a gentle life. The failure modes that follow are predictable and expensive to correct after the fact.
Scuffed or unreadable barcodes
Case-pack friction or belt contact abrades the print surface, causing scan rejects at distribution.
Ink lift or smearing
Moisture, caustic cleaners, or solvent wipe-down can lift or smear ink that isn’t protected by a coating or film.
Faded print or color shift
Outdoor dwell or long UV exposure degrades ink color over time without UV-stable protection.
Edge lift and delamination
Curved or squeezable containers stress label edges, and unprotected adhesive or facestock can lift or delaminate.
Illegible variable data
Lot codes, expiry dates, and dosage text can become unreadable after cold-chain cycling degrades the print surface.
Each of these outcomes turns into relabeling, holds, or a rejected shipment — screening protection options up front costs a fraction of the rework.
What Is Overlaminate? Applications, Gloss Levels, and Durability Profile
An overlaminate is a separate film bonded over the printed label with adhesive, forming a physical barrier that fluid coatings generally cannot match.
Because it is a discrete film rather than a coating bonded into the ink, overlaminate delivers mechanical and chemical resistance that fluid topcoats cannot reliably reproduce.
Film Types Used for Label Overlaminate
Polypropylene / BOPP
BOPP label laminate is the workhorse film — clear, economical, with good scuff and moisture resistance for most consumer packaging.
Polyester (PET)
Polyester label laminate offers higher stiffness with better heat and chemical tolerance. Common on industrial, asset, and equipment labels.
Vinyl
Conformable and durable — used where the label must flex around compound curves or survive extended outdoor dwell.
Finish Options: Gloss, Matte, and Soft-Touch
High gloss
Adds color pop on retail SKUs where shelf standout matters most.
Matte
Supports premium positioning and low-glare readability; also reduces fingerprint visibility, which matters most on dark backgrounds.
Soft-touch
Adds tactile differentiation for personal care and spirits packaging, alongside the same reduced fingerprint visibility as matte film.
The trade-offs are real. Laminate adds caliper — an illustrative planning range is roughly 0.5 to 2 mils depending on film choice — and that added thickness changes how the web dies, how the label dispenses, and how much peel force an applicator sees. It also adds material cost per thousand, and if the laminating step runs offline, it adds a handling pass, work in process, and lead time.
What Is Varnish on a Label? UV vs. Aqueous Varnish Options
Varnish is a fluid coating cured or dried onto the printed label — protecting without the added caliper, cost, or process steps of a film layer.
Varnish bonds to the ink and substrate after application, rather than sitting on top of it as a separate film. That keeps caliper, cost, and process steps down compared with an overlaminate.
UV Varnish vs. Aqueous Varnish
UV Varnish
UV varnish labels cure instantly under UV energy rather than drying by evaporation. This builds a harder, thicker film than most water-based options, offers the widest gloss range, and generally gives better rub and moisture resistance — usually enough for retail handling, transit friction, and incidental moisture. A gloss varnish on a nutraceutical bottle or a boxed durable good is a common fit.
Aqueous (Water-Based) Varnish
Also known as an aqueous varnish coating or aqueous finish, this dries thinner and costs less than UV varnish. It handles basic scuff and handling protection well, and is often preferred where a lower coating build is needed, where recyclability or food-contact review is part of the specification, or where the design calls for a subdued finish. For a regulated application, confirm the specific coating with your material supplier and quality team rather than assuming category-level acceptance.
Both types can be applied as flood coverage across the full label or as spot varnish over selected artwork — spot gloss over a matte background creates tactile and visual contrast without a second film. What varnish generally does not do is stand up to prolonged immersion, aggressive solvents, or caustic wash-down. That is where a film barrier takes over. Arrow’s UV label printing systems apply UV varnish inline — see the ArrowJet UV 330H section below.
Side-by-Side Comparison: Overlaminate vs. UV Varnish vs. Aqueous Varnish
Film overlaminate leads on abrasion, moisture, and chemical resistance; UV varnish offers the best balance of protection, gloss, and cost.
Attribute | Film Overlaminate | UV Varnish | Aqueous Varnish |
Abrasion / scuff resistance | Highest | Good to very good | Basic |
Moisture and immersion | Best; supports a near-waterproof surface | Moderate; resists condensation, not soaking | Limited |
Solvent and cleaner resistance | Strongest option for chemical contact | Moderate | Low |
UV / light exposure | Best, especially with UV-inhibiting films | Moderate | Low |
Gloss range | Gloss, matte, soft-touch | Widest gloss potential; matte available | Satin to low gloss |
Added thickness (illustrative) | ~0.5–2.0 mils | Very thin | Thinnest |
Downstream effects | Affects die cut, dispensing, peel force | Minimal | Minimal |
Lead time | Longest if applied offline | Short; applied in the print pass | Short |
Relative cost per thousand | Highest | Mid | Lowest |
Rules of thumb:
- Choose film when the label faces immersion, wash-down, solvents, extended outdoor dwell, or heavy abrasion — or when a varnish has already failed a field test.
- Choose UV varnish for retail-handled SKUs, transit friction, and incidental moisture where gloss control also matters.
- Choose aqueous varnish for short-life, low-exposure SKUs, or where coating build and recyclability review drive the spec.
- Let cost decide when both pass your screening tests. Laminating a shelf-stable dry-goods carton label that never sees moisture adds thickness and price without buying performance, and heavier labels can force applicator retuning you did not budget for.
Application Environments Where Each Option Excels
Cold chain, wash-down, chemical contact, transit abrasion, retail handling, and outdoor dwell each favor a different protection option.
Cold Chain and Condensation
Beverage cans in ice slurry and frozen food cartons cycle through wet and dry states repeatedly. Film laminate on a synthetic face stock is the safer call — varnish alone often shows edge softening or ink haze.
Wash-Down and Caustic Cleaning
Wash-down label protection matters most for equipment, tank, and processing-area labels in food and beverage plants that meet high-pressure spray and alkaline chemistry. Polyester laminate is the standard direction here, since coatings rarely survive repeated caustic contact.
Chemical and Solvent Contact
Lubricant drums, agricultural containers, and industrial chemistry see splash, hand oils, and wipe-down with the same solvent inside the drum. Specify film, and test against the actual chemical.
High-Abrasion Transit and Case Packing
E-commerce and distribution labels rub against corrugate and conveyors. UV varnish is often adequate for barcode survival; add laminate when scan-critical data sits in a high-contact zone.
Retail Shelf Handling and Appearance-Driven SKUs
Personal care, nutraceutical, and spirits labels are handled repeatedly by shoppers. Choose on look first — soft-touch or matte film for premium tactile feel, UV varnish for high-gloss color at lower cost.
Long-Dwell and Outdoor Exposure
Asset tags, safety markings, and durable goods rating plates need UV-stable film. Varnish alone will not hold color over multi-year exposure.

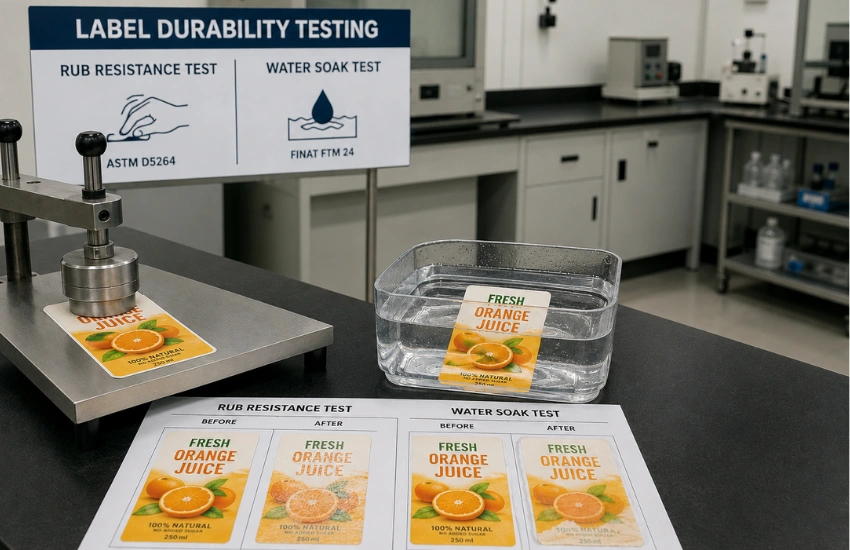

Test Before You Commit
A short in-house screening routine — print, rub, soak, wipe, and verify barcodes — catches most protection failures before a production run.
Treat protection as something you verify, not something you assume. This is a practical, in-house screening routine — not certified standards testing — and it catches most surprises before a full production run.
- Define the exposure profile. Write down what the label will meet: wet, dry, chemical (which one), temperature range, and expected handling life.
- Print representative samples using the actual substrate, ink set, and each protection option under consideration.
- Rub and abrasion check. Dry rub and weighted rub across printed areas, including barcode zones.
- Water soak or condensation cycle. Immerse or cycle wet and dry, then check for ink lift and edge behavior.
- Solvent wipe with the exact cleaner used in the field, not a generic alcohol wipe.
- Barcode verification after exposure, not only before.
- Document results as an internal spec tied to the SKU family, so repeat orders stop being judgment calls.

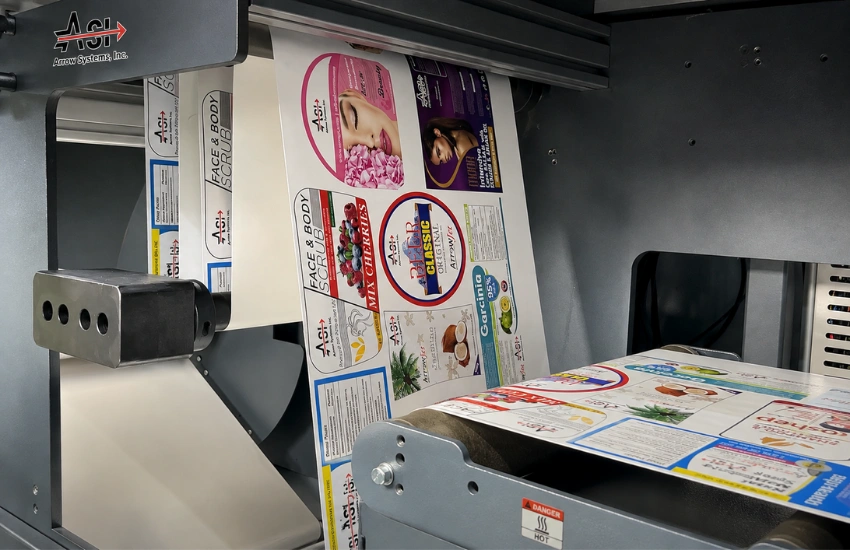

ArrowJet UV 330H: Inline UV Varnish for Label Surface Protection
The ArrowJet UV 330H applies UV varnish inline during printing — CMYK+VV or CMYK+WV — removing a separate offline coating pass entirely.
The ArrowJet UV 330H is a digital label press that applies UV varnish in the same controlled pass as printing. For converters and in-plant label operations, that removes an offline coating step, along with the extra handling, staged work in process, and setup waste of moving rolls between machines.
Inline application, no offline pass
Print and varnish happen in the same pass on the UV 330H, removing the handling, staged work in process, and setup waste of a separate offline coating step.
Multiple ink and varnish configurations
The press supports CMYK + Varnish (VV) and CMYK + White + Varnish (WV) configurations, enabling opaque white on clear or dark substrates alongside spot or flood UV varnish in a single pass.
Hybrid roll-to-roll and flatbed operation
The same press handles standard roll-fed labels and rigid or flatbed substrates up to 50mm thick — useful for producing varnished roll labels and rigid signage or prototypes on one platform.
Zoned vacuum bed for registration
A zoned inspection vacuum bed holds media flat and keeps CMYK, white, and varnish layers in accurate registration, including on thin films and specialty substrates.
Teams running short and mid-length digital jobs often see the largest benefit, because a separate finishing pass can consume as much schedule time as the print itself. Keeping print and varnish in one pass also cuts manual touchpoints, reduces the chance of the wrong roll entering the wrong step, and shortens the path from approved artwork to finished rolls.
One honest boundary: inline UV varnish does not replace a film barrier. Where the application involves immersion, caustic wash-down, or aggressive solvents, film overlaminate remains the correct specification — see the in-house cold lamination equipment below. View ArrowJet UV 330H specifications →
In-House Cold Lamination: Aries, EZCut 330R+, and EZCut 350R for Applying Film Overlaminate
Arrow’s Aries, EZCut 330R+, and EZCut 350R finishing systems include built-in cold lamination for applying film overlaminate in-house.
Cold lamination labels don’t have to come from an outside converter. When the screening workflow above points to film overlaminate, several Arrow digital finishing systems build cold lamination into the same pass as die-cutting, waste-matrix removal, and slitting — cold lamination bonds a pressure-sensitive film to the printed label without heat, as distinct from heat-lamination processes.
Aries (Semi-Rotary Label Finisher)
A semi-rotary finishing system combining cold lamination, die-cutting, waste removal, and slitting in one pass, with a touchscreen PC interface and speeds up to 30 m/min on 13″ (330mm) media. View Aries specifications →
Arrow EZCut 330R+
A roll-to-roll digital die cutter with a built-in cold lamination system alongside automatic matrix removal and rewinding, cutting up to 150 cuts per minute on media up to 350mm wide. View EZCut 330R+ specifications →
Arrow EZCut 350R
A multi-head digital die cutter with cold laminating and slitting built in, running at up to 9 m/min on media up to 330mm wide, suited to short-to-medium print finishing runs. View EZCut 350R specifications →
Confirm your target film weight, web width, and run length against each system’s specifications before committing to an in-house lamination workflow — see the full range of Arrow label finishing equipment for additional configurations.
Frequently Asked Questions — Overlaminate vs. Varnish Labels
Common questions on waterproofing, applicator compatibility, appearance trade-offs, and in-house lamination equipment.
UV varnish commonly performs well against condensation and brief splash, but it is not an immersion barrier. For ice-bath beverages, frozen packaging, or anything that soaks, pair a synthetic face stock with film laminate and validate with a water-soak test using your own materials.
Often, yes. Added caliper and stiffness affect die cutting, dispensing at the peel plate, and required peel force, especially on small or highly curved labels. Run laminated samples through the actual applicator before locking the spec.
You can get a similar low-gloss appearance, but not the same feel or durability. Matte film delivers deeper texture, better fingerprint resistance, and stronger abrasion protection. If the design is appearance-driven and exposure is light, matte varnish can be the more economical choice.
It depends on the equipment. Arrow’s EZCut 330R+, EZCut 350R, and Aries digital finishing systems include built-in cold lamination, applying film overlaminate in the same pass as die-cutting and slitting — no separate offline laminator or outside converter required. Confirm your target film weight and web width against each system’s specifications before committing to an in-house workflow.
See Arrow's Label Protection Equipment in Production
Whichever protection option a SKU family needs, Arrow Systems builds the hardware to apply it in-house: the ArrowJet UV 330H for inline UV varnish, and the EZCut 330R+, EZCut 350R, and Aries finishing systems for cold-laminated film overlaminate.
