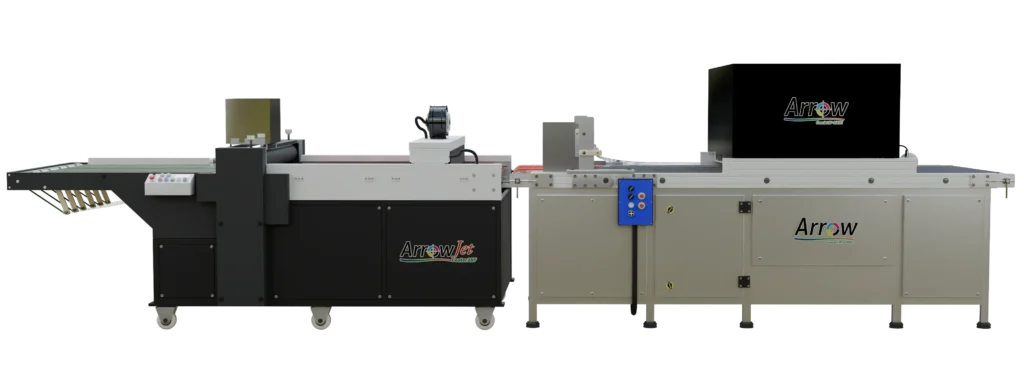

Arrow OverJet SP 800M
Inline Coating and Digital Printing for Packaging & Display
The Arrow OverJet SP-800M coats, dries and prints in one line, giving duplex board and packaging stock a smooth, print-ready surface before the Memjet DuraCore™ print engine goes to work. The result is sharp detail, accurate color and consistent output on cartons, corrugated, folding boxes and display board.
- Integrated Precision Coating and Drying
- Memjet DuraCore™ Print Engine with Setanta Technology
- CMYK Dual Printhead with Water-Based Pigment Inks
- High Resolution up to 1600 × 1600 dpi
- Belt Speed up to 195 ft/min
- Max. Sheet Width: 800 mm (31.5″)
- Vacuum Conveyor with Mark-Sensor Registration
From Substrate to Premium Print
How the OverJet SP-800M prepares and prints duplex board, packaging and display stock in one integrated process.
01
Precision Coating
An even, print-ready coating is applied to each sheet for stronger color and consistent output.
02
Efficient Drying
The coated substrate is dried before printing, keeping production consistent.
03
Digital Printing
The Memjet DuraCore™ engine prints CMYK with sharp detail, accurate color and repeatable results.
04
Premium Output
Clear, vivid and durable prints for packaging and display, produced on demand.
Overview
Memjet Technology
Applications
Specifications
Brochure
Overview
The Arrow OverJet SP-800M brings coating, drying and Memjet DuraCore™ digital printing together on one sheet-fed line, so converters and in-house packaging teams can print cartons, corrugated board and display pieces on demand, without printing plates.
Coat, Dry and Print in One Line: Packaging boards are rarely an ideal inkjet surface. Each sheet passes through a precision coating stage and an efficient drying stage before it reaches the print engine, so the ink lands on a smooth, print-ready surface. You get stronger color and more consistent results without scheduling a separate offline priming step.
Precision Engineering: A dual CMYK printhead configuration prints at up to 1600 × 1600 dpi, with 1600 × 954 and 1600 × 640 dpi modes also available. A vacuum conveyor holds each sheet flat, the media centering guide keeps it aligned, and a mark sensor keeps every print in register, so fine text, barcodes and gradients come out clean.
Built for Packaging Production: Run sheets up to 800 mm (31.5″) wide with a 638 mm (25.1″) print width at belt speeds up to 195 ft/min. Ink is supplied from 10 L tanks, and the machine runs on three-phase 220V power. Short-run cartons, seasonal displays, pharmaceutical packaging and promotional signage can all be printed in-house, on your own schedule.
Bring packaging and display work in-house with the Arrow OverJet SP-800M. Print bigger, print better and print faster.
Memjet Technology
Memjet DuraCore™ Print Engine: The SP-800M is built on Memjet DuraCore™, Memjet’s production print engine platform that delivers its hallmark 1600 dpi quality in four-color CMYK. Paired with a dual printhead configuration, it gives the SP-800M the detail and color accuracy that premium packaging and retail display work demand.
Water-Based Pigment Inks: A high-durability, water-based pigmented aqueous ink platform delivers vibrant CMYK color on cartons, corrugated and display board, supplied from 10 L tanks for steady production.
Applications
Built for Packaging & Display:
From luxury boxes and pharmaceutical cartons to display boards,
standees, POS displays and promotional signage, the SP-800M prints
the packaging and point-of-sale pieces that make a product stand out
on the shelf.
Luxury & Premium Boxes
Rich, consistent color on gift and retail boxes.
Pharmaceutical Cartons
Sharp text and graphics on pharmaceutical folding cartons.
Folding Cartons
Short-run and versioned cartons on duplex board.
Corrugated Packaging
Branded shipping and product boxes, printed in-house.
POS & Retail Displays
Display boards, standees and point-of-sale units.
Promotional Signage
Foam board signage for campaigns, promotions and events.
Specifications
| Specifications | Details |
|---|---|
| Print Engine | Memjet DuraCore™ with Setanta technology |
| Printing Color | CMYK |
| Printing Technology | CMYK dual printhead |
| Printing Resolution | 1600 × 1600 dpi, 1600 × 954 dpi & 1600 × 640 dpi |
| Belt Speed | Up to 195 ft/min |
| Max. Sheet Width | 800 mm |
| Max. Printing Width | 638 mm |
| Inline Process | Precision coating and drying before printing |
| Printing Platform | High-durability water-based pigmented aqueous inkjet |
| Ink Capacity | 10 L tanks |
| Registration Device | Mark sensor |
| Additional Features | Media centering guide, vacuum conveyor and more |
| Material Supported | Cartons, corrugated, folding boxes, foam board and more |
| Power Requirements | Three-phase 220V + N + G |
Brochure
Frequently Asked Questions
The SP-800M prints on duplex board and packaging materials, including cartons, corrugated board, folding boxes and foam board. It accepts sheets up to 800 mm wide with a maximum printing width of 638 mm. To confirm results on a specific board, request a sample print on your own material.
Packaging boards often absorb ink unevenly. The integrated precision coating stage applies an even, print-ready layer, and the drying stage prepares it before printing. The result is stronger color vibrancy and more consistent output, without a separate offline priming step.
The SP-800M is built on the Memjet DuraCore™ print engine with a dual CMYK printhead configuration. Its printheads are updated with Memjet Setanta technology, a nozzle-control system that gives finer control over print modes, keeps idle nozzles at print-ready temperature and runs faster automatic declogging cycles.
The SP-800M runs at belt speeds up to 195 ft/min (59.4 m/min). It offers three resolution modes: 1600 × 1600 dpi, 1600 × 954 dpi and 1600 × 640 dpi. The Arrow team can recommend the right mode for your artwork and substrate.
It uses a high-durability, water-based pigmented aqueous ink platform in CMYK, supplied from 10 L tanks.
The SP-800M requires three-phase 220V power (220V + N + G). Contact Arrow Systems for full site requirements, including footprint, before installation.
Yes. Send your artwork and the board stock you run today, and Arrow Systems will arrange a sample print so you can evaluate color, detail and finish on your own materials before you buy.
